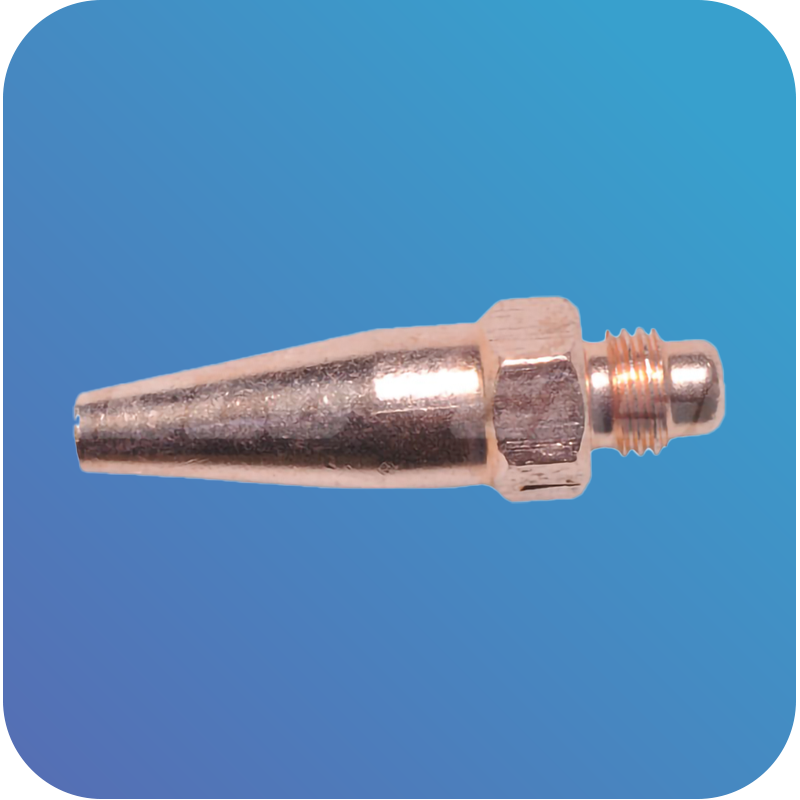

Gas Welding Nozzle

Gasco Gas Welding Nozzles are designed for precise and efficient gas welding applications across various MS thickness ranges. Built with durable materials and engineered for stable flame performance, these nozzles ensure cleaner welds, consistent gas flow, and superior control. With multiple tip numbers available to match different metal thicknesses, the torch delivers excellent performance for both light and heavy-duty welding tasks.

Key Features

High-quality construction ensures long service life

Sturdy brass body designed for durability

Nylon-sealed gas valves prevent leakage and increase safety

Lightweight, easy to handle, and ideal for continuous welding

Wide range of tip numbers suited for different MS plate thicknesses

Optimized gas consumption for cost-efficient operation

Specifications

1. Tip & Thickness Compatibility

MS Thickness (mm) 0.6 0.91 1.2 2.1 2.6 3.2 3.9 4.8 6.4 8

Tip Number 0 1 2 3 5 7 10 13 18 25

2. Gas Pressure Requirements

Oxygen Pressure:

0.14 kg/cm² for thin plates (0.6–2.6mm)

0.28 kg/cm² for medium plates (3.2–4.8mm)

0.42 kg/cm² for thick plates (6.4–8mm)

Acetylene Pressure:

0.14 kg/cm² for thin plates

0.28 kg/cm² for medium plates

0.42 kg/cm² for thick plates

3. Gas Consumption (Cu Meter/Hour)

Tip No. Gas Consumption (m³/hr)

0 0.03

1 0.03

2 0.06

3 0.09

5 0.14

7 0.20

10 0.30

13 0.40

18 0.50

25 0.70
