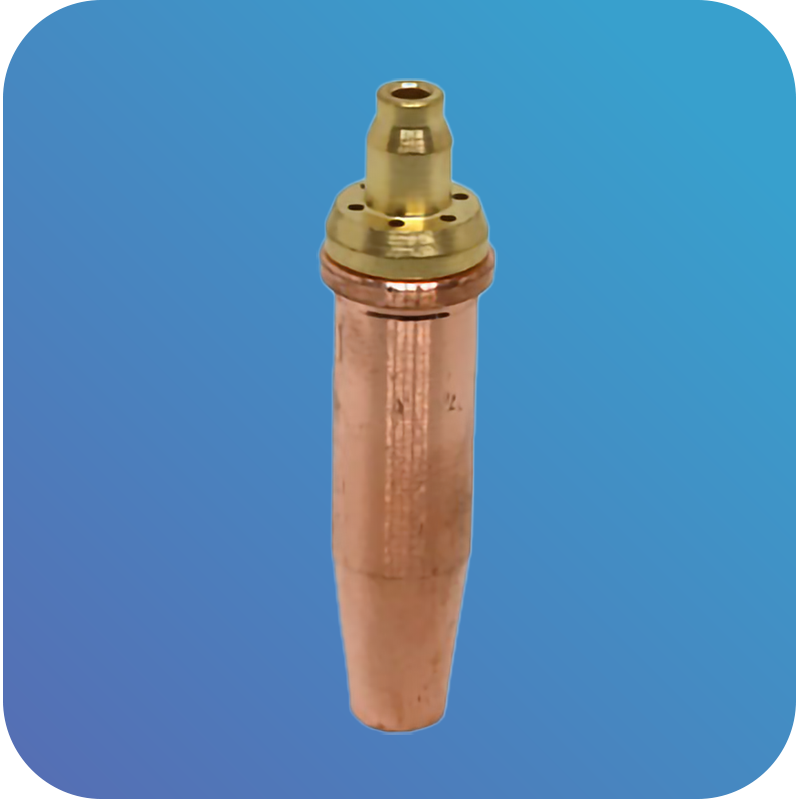

Gas Cutting Nozzle

Gas Cutting Nozzles (B Type and PNM/NM Type) are designed for precise, safe, and efficient Oxy–Fuel gas cutting operations. These nozzles deliver stable flame performance, accurate cutting on mild steel plates, and high durability.

The B-Type Nozzle, used with two-seat blowpipe gas cutting torches, is ideal for LPG cutting.

The PNM/NM Type Nozzle, engineered with a safer 3-seat mixing design, drastically reduces chances of flashback, making it suitable for both LPG (two-piece) and Acetylene (single-piece) cutting operations.

Key Features:

B-Type Gas Cutting Nozzle (LPG)

1. Suitable for two-seat blowpipe gas cutting torches

2. Two-piece nozzle design for LPG operations

3. Wide cutting range from 3 mm to 300 mm

4. Stable oxygen pressure requirement based on cutting thickness

5. Strong and durable build for continuous industrial use

PNM/NM Type Gas Cutting Nozzle (LPG & Acetylene)

1. 3-seat nozzle mixing system for maximum safety

2. Significantly reduces flashback/backfire probability

3. Two-piece nozzle for LPG and single-piece nozzle for Acetylene

4. Designed for smooth, precise cutting of MS plates from 3 mm to 300 mm

5. High-performance stainless steel/brass material ensures long service life

6. Cutting Capacity & Oxygen Pressure Chart

B-Type Nozzle (LPG)

Nozzle Size (Inches) Cutting Thickness (mm) Oxygen Pressure (kg/cm²)

1/32“ 3 – 6 1.5

3/64” 6 – 19 3.0

1/16“ 19 – 100 5.0

5/64” 100 – 150 6.0

3/32“ 150 – 200 7.5

7/64” 200 – 250 8.0

1/8" 250 – 300 8.0

PNM / NM Type Nozzle (LPG & Acetylene)

(Same chart as B-Type, applicable for both LPG & Acetylene use.)

Applications

1. Oxy–LPG and Oxy–Acetylene gas cutting

2. Sheet metal cutting

3. Heavy-duty MS plate cutting up to 300 mm

4. Fabrication units

5. Industrial cutting workshops

6. Structural cutting, scrap cutting, and repair jobs
